When devices communicate in a computer network, they need a way to send and receive data. The method of communication between two devices is called the transmission mode. Think of it like a road: some roads allow traffic in one direction only, while others allow traffic both ways.

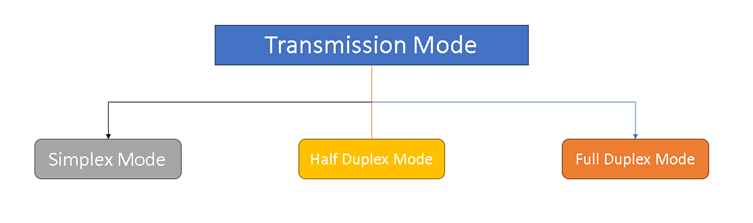

In networking, there are three main transmission modes: Simplex, Half-Duplex, and Full-Duplex. Let’s break them down in simple terms with real-life examples.

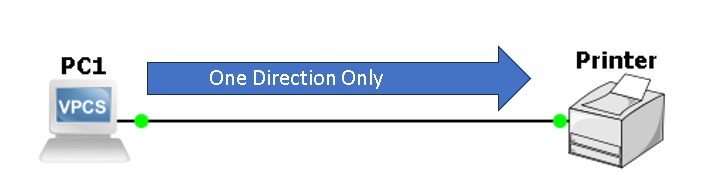

1. Simplex Mode
In Simplex mode, communication flows in only one direction. One device is always the sender, and the other is always the receiver. The receiver cannot send anything back.
Example in Real Life:
- Think of a radio broadcast. The radio station transmits signals, and your radio receives them. You cannot talk back to the radio station using the same channel.
In Networking:
- Keyboards, monitors, and printers are good examples. Your keyboard sends keystrokes to the computer, but it doesn’t receive data back. Similarly, your monitor only receives video signals from the computer.
Key Points:
- One-way communication only.
- Receiver cannot respond.
- Simple and inexpensive, but limited.

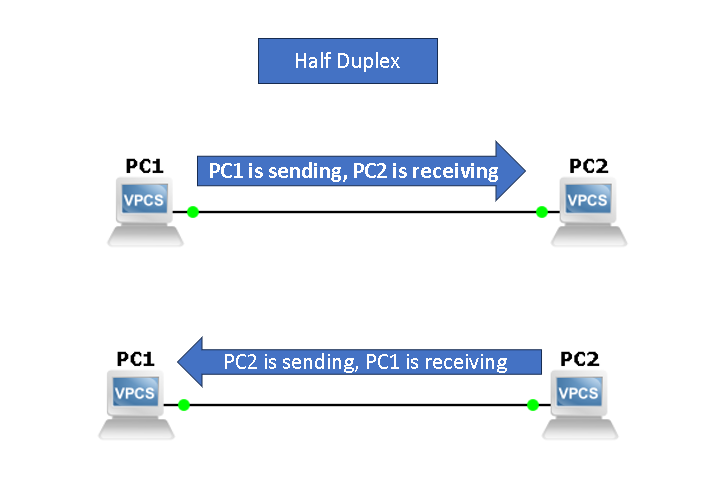

2. Half-Duplex Mode
In Half-Duplex mode, communication happens in both directions, but only one device can transmit at a time. If one device is sending data, the other must wait until the channel is free before responding.
Example in Real Life:
- A walkie-talkie works in half-duplex mode. When one person talks, the other person must wait and listen. If both try to talk at once, the communication gets interrupted.
In Networking:
- Older Ethernet networks using hubs worked on half-duplex. Devices could either send or receive, but not at the same time.
Key Points:
- Two-way communication, but only one side at a time.
- More efficient than Simplex, but slower than Full-Duplex.
- Common in older systems and certain wireless setups.

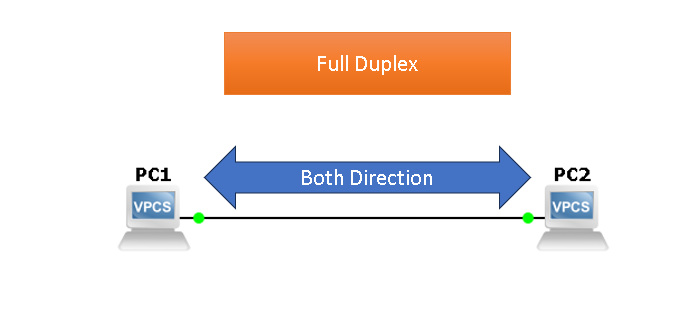

3. Full-Duplex Mode
In Full-Duplex mode, communication flows in both directions at the same time. Both devices can send and receive data simultaneously without waiting.
Example in Real Life:
- A telephone call is full-duplex. You can talk while the other person is also speaking, and both voices are heard without waiting.
In Networking:
- Modern Ethernet switches and most wireless technologies work in full-duplex mode. This allows high-speed communication between devices, improving performance and efficiency.
Key Points:
- Two-way communication at the same time.
- No waiting required.
- Most efficient mode, used in modern networking.
Comparison Table
| Mode | Direction of Data Flow | Example | Efficiency |
| Simplex | One-way only | Radio, Monitor, Keyboard | Low |
| Half-Duplex | Both ways, but one at a time | Walkie-Talkie, Hub | Medium |
| Full-Duplex | Both ways simultaneously | Telephone, Switch | High |
Why Transmission Modes Matter
Transmission modes directly affect how fast and efficiently data moves in a network.
- Simplex is useful for devices that only need one-way communication.
- Half-Duplex is suitable for systems where simultaneous transmission isn’t necessary.
- Full-Duplex is ideal for high-speed, modern communication where performance is critical.
By understanding these modes, network engineers can design better systems, reduce delays, and improve the overall user experience.
Final Thoughts
Transmission modes are like the rules of the road for data communication.
- Simplex is a one-way street.
- Half-Duplex is a two-way street, but only one car moves at a time.
- Full-Duplex is a two-way street with traffic moving freely in both directions.
Today’s networks mostly rely on full-duplex communication because it provides the best performance. Still, knowing all three modes helps us appreciate how networking has evolved and how data moves between devices.
