When your network has multiple VLANs, it’s common to see unnecessary broadcast and multicast traffic moving across every trunk link – even to switches that don’t have hosts for that VLAN. This wastes valuable bandwidth.
That’s exactly what VTP Pruning is designed to prevent. It’s a smart feature that helps your switches send VLAN traffic only where it’s actually needed, improving efficiency and keeping the network tidy.
Let’s unpack how it works in a simple, conversational way.
What is VTP Pruning and Why It Matters
In any VLAN network, broadcasts, multicasts, and unknown unicasts are sent out to all trunk links by default.
However, not every switch serves every VLAN. If a broadcast for VLAN 10 reaches a switch that only has VLAN 20, that traffic is simply wasted.
That’s where VTP Pruning steps in – it automatically stops VLAN traffic from traveling over trunk links that don’t have active ports for that VLAN.
In Short:
VTP Pruning saves bandwidth by stopping unnecessary VLAN traffic from flowing across trunk links that don’t need it.
This keeps your links clear, ensures faster forwarding, and improves overall performance.
Example Topology Understanding How Pruning Works

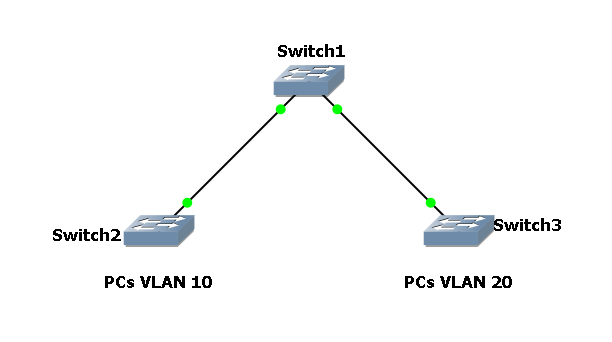

Imagine the following small network:
- SW1 – VTP Server
- SW2 – VTP Client (VLAN 10)
- SW3 – VTP Client (VLAN 20)
Without pruning:
- Broadcasts from VLAN 10 on SW2 travel to SW3 (which doesn’t need them).
- VLAN 20 broadcasts from SW3 go to SW2 (also unnecessary).
With pruning enabled:
- SW1 learns which switches actually need which VLANs.
- It prevents VLAN 10 traffic from reaching SW3, and VLAN 20 traffic from reaching SW2.
Result: Each switch only gets VLAN traffic relevant to it. Bandwidth is conserved, and the network runs smoother.
How to Configure VTP Pruning
You enable VTP Pruning on the VTP Server. The change then automatically applies to all VTP Clients in the same domain.
Step 1: Enable VTP Pruning
| Switch(config)# vtp pruning |
This command activates pruning across the VTP domain.
Step 2: Verify Pruning Status
| Switch# show vtp status VTP Pruning Mode : Enabled |
Step 3: Control VLANs Manually on a Trunk (Optional)
If you want to prune specific VLANs on a trunk:
| Switch(config-if)# switchport trunk pruning vlan add 10,20 |
To remove VLANs from the pruning list:
| Switch(config-if)# switchport trunk pruning vlan remove 10,20 |
This gives fine-grained control over VLAN traffic per link.
VLANs That Can’t Be Pruned
Certain VLANs are always forwarded, even when pruning is active:
- VLAN 1 – Used for management and control traffic (like CDP or STP)
- VLANs 1002-1005 – Reserved for legacy Token Ring and FDDI
These VLANs remain unpruned to keep essential network operations stable.
Why Use VTP Pruning – Key Benefits
| Benefit | Description |
| Saves Bandwidth | Stops unnecessary VLAN broadcasts and multicasts. |
| Better Performance | Reduces congestion and CPU load on switches. |
| Easier Troubleshooting | Less noise makes analyzing traffic simpler. |
| Adapts Automatically | Updates dynamically as VLANs are added or removed. |
Useful Verification Commands
To see which VLANs are being pruned:
| Switch# show interfaces trunk |
Output example:
| Pruning VLANs Enabled: 2-1001 |
To check pruning status on the switch:
| Switch# show vtp status |
Quick Recap
VTP Pruning is like a filter for VLAN traffic – it makes sure that only the right VLANs send data to the right places. This not only saves bandwidth but also makes your Layer 2 network cleaner and more efficient.
If your network has several VLANs but not all of them exist everywhere, enabling VTP Pruning is a smart move.
VTP Best Practices and Common Mistakes to Avoid
VTP can be an excellent time-saver – but it can also cause chaos if not used carefully. Let’s go through some common pitfalls and best practices to keep your VLAN management safe and predictable.
Beware of the Revision Number Mismatch
VTP tracks VLAN changes using a configuration revision number. Each time a VLAN is created, modified, or deleted, the revision number goes up.
When a switch joins a VTP domain, it checks which device has the highest revision number. The one with the higher number is treated as the “latest” configuration.
Why This Is Dangerous
If you connect a switch that has an empty VLAN database but a higher revision number, it can overwrite all VLANs in the network with its empty configuration.
The result? – All VLANs in your production network vanish instantly.
How to Prevent It
Before connecting any new switch:
| Switch# delete flash:vlan.dat Switch# reload |
This resets the VLAN database and revision number to zero, preventing accidental overwrites.
Safely Adding New Switches
To safely introduce a new switch to a running VTP network:
- Delete its VLAN database (delete flash:vlan.dat).
- Set it to Transparent mode.
- Confirm the correct domain name and version.
- Change it to Client mode only after verifying the VLANs.
Following these steps ensures that the new switch doesn’t unintentionally modify or erase VLAN data.
When You Should Disable VTP
If your organization rarely changes VLANs or prefers manual control, it’s often safer to disable VTP altogether.
In that case, set your switches to Transparent mode:
| Switch(config)# vtp mode transparent |
Transparent mode stops the device from participating in VTP updates and lets you manage VLANs manually on each switch – reducing the risk of large-scale mistakes.
VTP vs Manual VLAN Management
| Feature | VTP | Manual Configuration |
| Ease of Management | Automatic VLAN propagation | VLANs created manually per switch |
| Risk Level | Higher (revision mismatch possible) | Lower (manual changes only) |
| Scalability | Excellent for large stable setups | Slower for large networks |
| Best Used In | Environments with tight change control | Networks with frequent admin activity |
How VTP Version 3 Improves Safety
Cisco introduced VTP version 3 to solve many of the issues that older versions had.
Key improvements include:
- Primary Server Concept: Only the primary server can make VLAN changes.
- Support for VLANs 1-4094.
- Password Protection: Adds authentication for updates.
- Better Database Protection: Prevents accidental overwrites.
If your network devices support it, VTPv3 is the safest and most reliable version to use.
VTP Best Practice Checklist
| Best Practice | Why It Matters |
| Reset new switches before connecting | Avoids revision mismatch issues. |
| Use Transparent mode when in doubt | Gives full manual control. |
| Use VTPv3 if supported | Adds extra safety and authentication. |
| Document every VLAN change | Keeps track of revisions and history. |
| Enable pruning | Optimizes traffic and bandwidth. |
Final Thoughts
VTP is like a double-edged sword – it can make VLAN management effortless or lead to major disruptions if mishandled.
To use it wisely:
- Understand how VTP operates.
- Always reset new switches before adding them.
- Enable pruning for efficiency.
- And if your environment doesn’t need automatic VLAN distribution – go Transparent.
By following these guidelines, you’ll enjoy all the convenience of VTP without the common risks.
